Flying Lead Orientation Tool (FLOT)
Flying Lead Orientation Tool (FLOT)

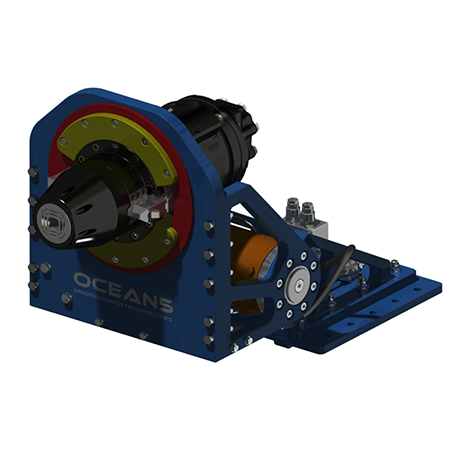

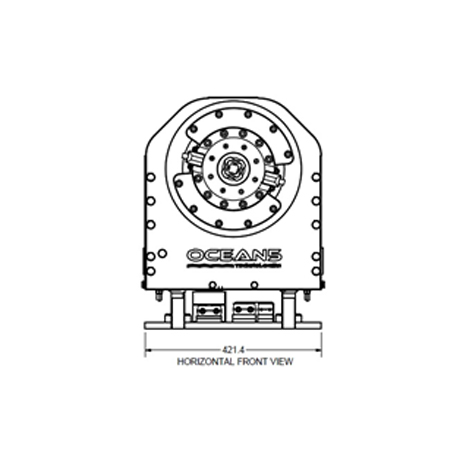

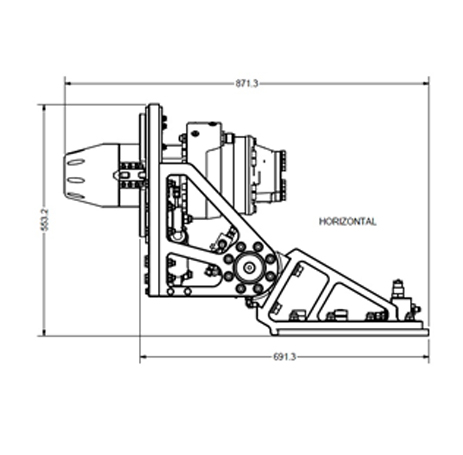

Ocean-5® Flying Lead Orientation Tool is designed for Class 1-4 Torque Tool when use at orientation and guiding flying lead attachment on stab plate. It is robust and compact with mounting arrangement for installation on a metallic framework forward to the ROV. A hydraulics rotary actuator and a double acting cylinder control the pitching and rotation movement respectively.
- 150° rotation angel
- +/-15° roll angle
- 630kg payload
- Counterbalance Valve on both actuator
SPECIFICATIONS

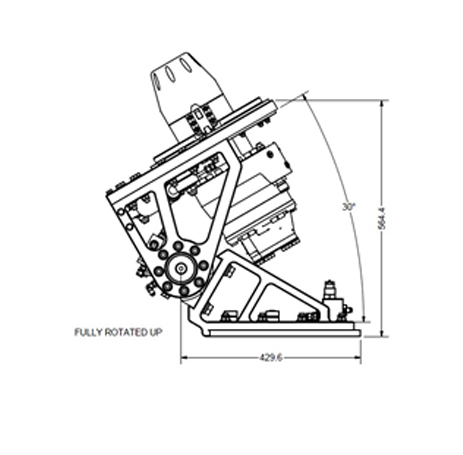

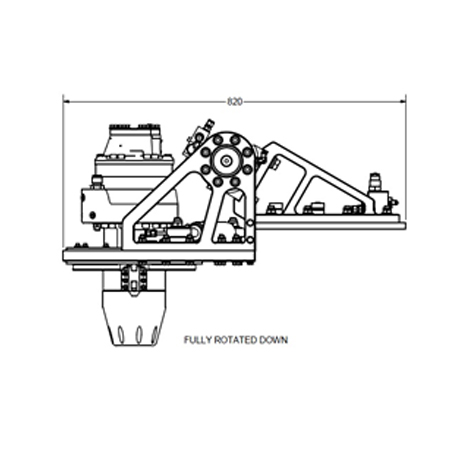

| Payload | 630 kg | |
| Weight In Air | 76Kg | |
| Weight In Water | 59Kg | |
| Max Tilt Up Angle | 60° Up from Horizontal | |
| Max Tilt Down Angle | 90° Down from Horizontal | |
| Tilt Rotation | +/-15° from vertical | |
| Hydraulics Pressure | 207 bar | |
| Hydraulics Control by | 2 x Solenoid Valve | |
| Tilt Actuator | Hydraulics Rotator c/w counter balance valve | |
| Rotation Actuator | SS316 Hydraulics Cylinder c/w counter balance valve JIC (SS316) | |
| Hydraulics Connections |
