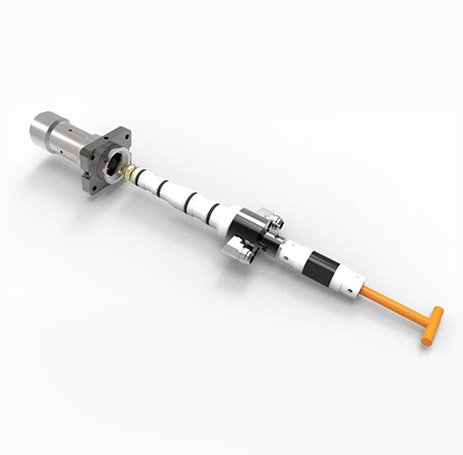

API-17H Dual Port Hot Stab
API-17H Dual Port Hot Stab
Ocean 5 Dual Port Hot Stab is based proven design. Each unit is manufactured under strict quality control and fully tested to verify functionalities and performance.
SPECIFICATIONS
| Specifications | Hot Stab | Receptacle |
| Type | Dual Port | Dual Port |
| Weight In Air | 5.7 Kg | 5 Kg |
| Weight In Water | 5 Kg | 4.3 Kg |
| Port | 3/8” NPT Female / Client Specified | |
| Standard | API-17H / ISO 13628-8 | |
| Material | Stainless Steel 316 | |
| Operating Pressure | 3,000 PSI, 10,000 PSI or 15,000 PSI Options | |
| Operating Fluid | Petroleum or Water Based | |
| Seals | Based on application | |
| ROV Deployment | D-Bar, T-Bar or Fishtail Handle | |
